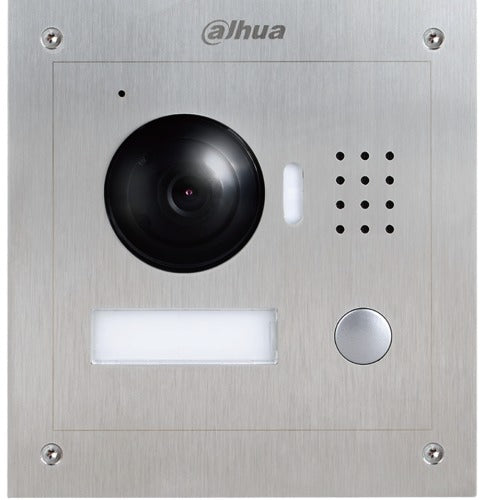

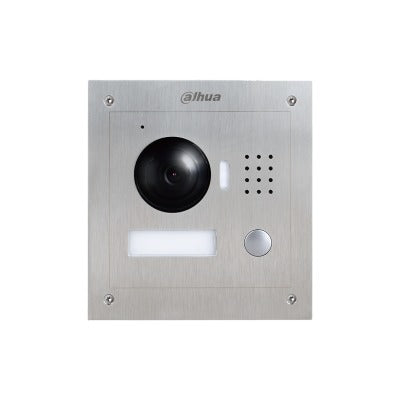

DAHUA 1 IP VILLA MODULE OUTDOOR STATION

Technical Specification

Mode

VTO2000A-C

System

Main Processor

Embedded Micro Processor

Operation System

Embedded LINUX OS

Video

Video Compression

H.264

Image Sensor

1/3” 1.3MP CMOS

Lens

2.8mm

Angle of View

D:117° H:87° V:63°

Day/Night

Color Image

Audio

Audio Compression

G.711

Audio Input

Omnidirectional Mic

Audio Output

Built-in Speaker

Bidirectional Talk

Support Dual-way Bidirectional talk

Operation Mode

Keypad

Mechanical Button

Interface

Door Control

2(1 relay out for main lock, 1 extended by access control module)

Alarm In

2(1ch unlock button, 1ch feedback)

RS485

1

Network

Ethernet

10M/100Mbps Self-adaptive

Network Protocol

TCP/IP

General

Ingress Protection

IP54, IK07

Tamper Switch

1

Installation

Surface & Flush

Material

Stainless Steel

Power

DC 12V

Power Consumption

Work ≤10W

Working Temperature

﹣30°C~+60°C

Relative Humidity

10%~90%RH

Dimensions

110.7mm×118.1mm×42.3mm

Weight

0.36Kg

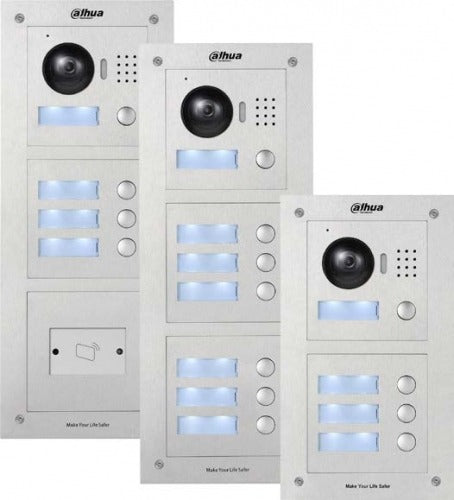

Model

VTO2000A-B/B1/B5

VTO2000A-R

Body Approaching

-

Support, 0.6m

General

Material

Stainless Steel

Power

Supply by VTO2000A-C

Power Consumption

Standby ≤0.1W, Work ≤0.45W

Standby ≤0.3W, Work ≤0.3W

Working Temperature

﹣30°C~+60°C

Relative Humidity

10%~90%RH

Dimensions

110mm×120mm×24.9mm

Weight

0.27Kg

Model

VTO2000A-K

Proximity Sensor

-

General

Material

Stainless Steel

Power

Supply by VTO2000A-C

Power Consumption

Standby ≤0.1W, Work ≤0.45W

Working Temperature

﹣30°C~+60°C

Relative Humidity

10%~90%RH

Dimensions

110mm×120mm×29.0mm

Weight

0.32Kg

Model

VTO2000A-F

VTO2000A-E

Proximity Sensor

-

-

General

Material

Stainless Steel

Power

Supply by VTO2000A-C

-

Power Consumption

Standby ≤0.1W, Work ≤0.45W

-

Working Temperature

﹣30°C~+60°C

-20°C~+60°C

Relative Humidity

10%~90%RH

Dimensions

110mm×120mm×24.9mm

Weight

0.27Kg
