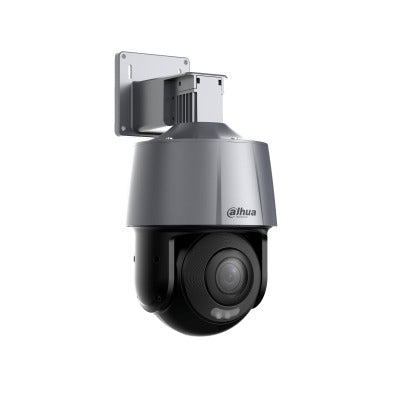

DAHUA 4 MP FULL-COLOR IVS NETWORK PT CAMERA 30M

Camera

Image Sensor

1/3" STARVIS™ CMOS

Max. Resolution

2560 x 1440

Effective Pixels

4MP

ROM

128M

RAM

128M

Electronic Shutter Speed

1/3 s–1/30,000s

Scanning Mode

Progressive

Minimum Illumination

Color: 0.002Lux@F1.6

B/W: 0.0002 Lux@F1.6

0 Lux (illuminator on)

IR Distance

30 m (98.42 ft) (IR)
30 m (98.42 ft) (white light)

IR On/Off Control

Auto; Manual; Off

IR LED Number

2 IR lights; 2 white light

Lens

Focal Length

4 mm

Aperture

F1.6

Field of View

H:80.2°, V:43.1°, D:94.3°

Close Focus Distance

0.3 m (0.98 ft)

Iris Control

Fixed

DORI Distance

Detect

Observe

Recognize

Identify

55.1 m
(180.77 ft)

21.9 m
(71.85 ft)

10.6 m
(34.78 ft)

4.6 m
(15.09 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 355°
Tilt: -15° to 90°

Manual Control Speed

Pan: 0.1°/s–26°/s
Tilt: 0.1°/s–17.5°/s

Preset Speed

Pan: 26°/s; Tilt: 17.5°/s

Presets

300

Power-off Memory

Support

Idle Motion

Preset

Smart Event

IVS

Tripwire; intrusion

Video

Compression

Smart H.265; H.265; Smart H.264; H.264; H.264B; MJPEG (Sub Stream)

Streaming Capability

2 Streams

Resolution

4M (2560 x 1440); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Frame Rate

Main stream: 4M (1–25/30 fps); 1080p (1–25/30 fps); 1.3M (1–25/30 fps); 720p (1–25/30 fps)
Sub stream 1: D1/CIF (1–25/30 fps)

Bit Rate Control

Variable Bit Rate/Constant Bit Rate

Bit Rate

H.264: 32 Kbps–8192 Kbps
H.265: 32 Kbps–8192 Kbps

Day/Night

Support

BLC

Support

WDR

DWDR

HLC

Support

White Balance

Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural/Street lamp

Gain Control

Auto/Manual

Noise Reduction

2D/3D

Motion Detection

Support

S/N Ratio

≥ 55 dB

Flip
