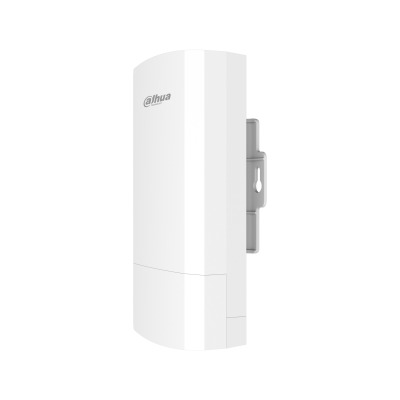

DAHUA ELEVATOR WIRELESS BRIDGE

Hardware

Function Slots

2

Power Supply

Passive PoE

Power Consumption

5 W

WAN Port

1 × 10/100 Mbps RJ-45 port

Indicator Light

1 × system indicator;
1 × WAN port indicator;
1 × LAN port indicator;
1 × Wi-Fi indicator

External Port

1 × LAN port (RJ-45);
1 × WAN port (RJ-45)

Wireless Standard

IEEE802.11b/g/n

Performance

Operating Frequency

2.412 GHz–2.484 GHz

Terminal Communication Protocol

TCP/IP protocol

Air Interface Rate

300 Mbps

Max. Output Power

20 dBm ± 2 dBm

Antenna

Built-in antenna

Antenna Gain

8 dBi

Antenna Direction Angle

Horizontal: 60°; vertical: 60°

Polarization

Horizontal/vertical dual polarization

Cross-polarization Isolation

23 dBi

Max. VSWR

<1.5

Transmission Distance

1 km (3280.84 ft)

Optimal Transmission Distance

300 m (984.25 ft)

Network Mode

Bridge mode

Operating Mode

Access point mode; repeater mode

Channel

1–13

Device Type

802.11b/g/n

Channel Width

20 MHz; 40 MHz

Standard TX Power

20 dBm

Protection

IP65

Function

WAN Port Connection Mode

Ethernet port

Encryption Mode

WPA2

Management and Log

AC; Syslog; NTP; Telnet

Firmware Update

Web update

Wireless Certification

WPA2

Security Mechanism

Password

Network Protocol

UDP; HTTPS; IPv4; DNS; TCP/IP; HTTP; NTP; DHCP
