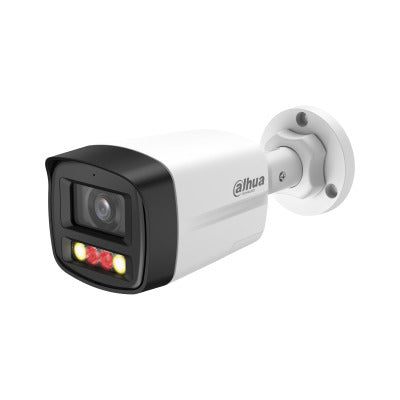

DAHUA IP 2MP Entry Smart Dual Light Active Deterrence Fixed-focal Bullet Camera IP67

DAHUA IP 2MP Entry Smart Dual Light Active Deterrence Fixed-focal Bullet Camera IP67

$48.23
Ir directamente a la información del producto
DAHUA IP 2MP Entry Smart Dual Light Active Deterrence Fixed-focal Bullet Camera IP67
  • DAHUA IP 2MP Entry Smart Dual Light Active Deterrence Fixed-focal Bullet Camera IP67
DAHUA IP 2MP Entry Smart Dual Light Active Deterrence Fixed-focal Bullet Camera IP67

DAHUA IP 2MP Entry Smart Dual Light Active Deterrence Fixed-focal Bullet Camera IP67

$48.23

PDF del producto


IPC-HFW1239TL1-PV

2MP Entry Smart Dual Light Active Deterrence Fixed-focal Bullet Network Camera

> 2-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.

> Outputs max. 2 MP (1920 × 1080)@25/30 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in IR LED and warm light, and the max. IR distance is 50 m, the max. warm light distance is 50 m.

> DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.

> Abnormality detection: Motion detection, video tampering, audio detection, network disconnection, IP conflict and illegal access.

> Built-in Mic; built-in speaker; support two-way talk.

> 12 VDC/PoE power supply, easy for installation.

> IP67 protection.

> Sound and light alarm.

> Supports human detection.

> One-tap arming/disarming.


  • Camera

    Image Sensor

    1/2.8" CMOS

    Max. Resolution

    1920 (H) × 1080 (V)

    ROM

    128 MB

    RAM

    128 MB

    Scanning System

    Progressive

    Electronic Shutter Speed

    Auto/Manual 1/3 s–1/100,000 s

    Min. Illumination

    0.005 lux@F1.6 (Color, 30 IRE)
    0.0005 lux@F1.6 (B/W, 30 IRE)
    0 lux (Illuminator on)

    S/N Ratio

    >56 dB

    Illumination Distance

    Up to 50 m (164.04 ft)(IR)
    Up to 50 m (164.04 ft)(Warm light)

    Illuminator On/Off Control

    Auto;Manual

    Illuminator Number

    2 (IR LED); 2 (Warm light)

    Angle Adjustment

    Pan: 0°–360°
    Tilt: 0°–90°
    Rotation: 0°–360°

    Lens

    Lens Type

    Fixed-focal

    Lens Mount

    M12

    Focal Length

    2.8 mm; 3.6 mm; 6 mm

    Max. Aperture

    F1.6

    Field of View

    2.8 mm: H: 103°; V: 55°; D: 123°
    3.6 mm: H: 86°; V: 46°; D: 103°
    6 mm: H: 53°; V: 29°; D: 62°

    Iris Control

    Fixed

    Close Focus Distance

    2.8 mm: 0.8 m (2.62 ft)
    3.6 mm: 1.1 m (3.61 ft)
    6 mm: 2.6 m (8.53 ft)

    DORI Distance
    Lens Detect Observe Recognize Identify
    2.8 mm 44.1 m
    ( 144.69 ft)    		 17.7 m
    ( 58.07 ft)    		 8.8 m
    ( 28.87 ft)    		 4.4 m

    ( 14.4 ft)
    3.6 mm 53.8 m
    ( 176.51 ft)    		 21.5 m
    ( 70.54 ft)    		 10.8 m
    ( 35.43 ft)    		 5.4 m

    ( 17.72 ft)
    6 mm 85.5 m
    ( 280.51 ft)    		 34.2 m
    ( 112.2 ft)    		 17.1 m
    ( 56.10 ft)    		 8.6 m

    ( 28.22 ft)
    *DORI (Detect, Observe, Recognize, Identify)is a standard system (EN-62676-4)for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

    Intelligence

    Human Detection

    Support the classification and accurate detection of human

    Smart Search

    Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

    Video

    Video Compression

    H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

    Smart Codec

    Smart H.265+; Smart H.264+

    Video Frame Rate

    Main stream: 1920 × 1080@(1–25/30 fps)
    sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
    *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

    Streaming Capability

    2 streams

    Resolution

    1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

    Bit Rate Control

    CBR/VBR

    Video Bit Rate

    H.264: 32 kbps–4096 kbps;
    H.265: 12 kbps–4096 kbps

    Day/Night

    Auto(ICR)/Color/B/W

    BLC

    Yes

    HLC

    Yes

    WDR

    DWDR

    White Balance

    Auto; natural; street lamp; outdoor; manual; regional custom

    Gain Control

    Manual;Auto

    Noise Reduction

    3D NR

    Motion Detection

    OFF/ON (4 areas, rectangular)

    Region of Interest (RoI)

    Yes (4 areas)
