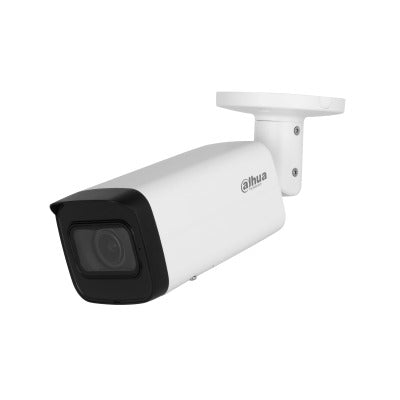

DAHUA IP 2MP WIZSENSE STARLIGHT BULLET CAMERA ZF 2.7-13.5MM WDR IR60M IP67

DAHUA SKU: DH-IPC-HFW2241TP-ZS-27135
DAHUA IP 2MP WIZSENSE STARLIGHT BULLET CAMERA ZF 2.7-13.5MM WDR IR60M IP67

DAHUA IP 2MP WIZSENSE STARLIGHT BULLET CAMERA ZF 2.7-13.5MM WDR IR60M IP67

DAHUA SKU: DH-IPC-HFW2241TP-ZS-27135
/
  • Inventario en el camino

IPC-HFW2241T-ZS

2MP IR Vari-focal Bullet WizSense Network Camera

> 2-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.

> Outputs max. 2 MP (1920 × 1080)@25/30 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in IR LED, and the max. illumination distance is 60 m.

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).

> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.

> Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); supports max. 256 G Micro SD card; built in MIC.

> 12 VDC/PoE power supply, easy for installation.

> IP67, IK10 (optional) protection.

> SMD Plus.


  • Specifications
  • Accessories
  • Download
  • Document
  • selector-pcimg

    Product Selector

    Camera

    Image Sensor

    1/2.8" CMOS

    Max. Resolution

    1920 (H) × 1080 (V)

    ROM

    128 MB

    RAM

    128 MB

    Scanning System

    Progressive

    Electronic Shutter Speed

    Auto/Manual 1/3 s–1/100,000 s

    Min. Illumination

    0.002 lux@F1.5 (Color, 30 IRE)
    0.0002 lux@F1.5 (B/W, 30 IRE)
    0 lux (Illuminator on)

    S/N Ratio

    >56 dB

    Illumination Distance

    Up to 60 m (196.85 ft) (IR LED)

    Illuminator On/Off Control

    Auto; Manual

    Illuminator Number

    4 (IR LED)

    Pan/Tilt/Rotation Range

    Pan: 0°–360°
    Tilt: 0°–90°
    Rotation: 0°–360°

    Lens

    Lens Type

    Motorized vari-focal

    Lens Mount

    φ14

    Focal Length

    2.7 mm–13.5 mm

    Max. Aperture

    F1.5

    Field of View

    H: 108°–30°;
    V: 56°–17°;
    D: 131°–35°

    Iris Control

    Fixed

    Close Focus Distance

    0.8 m (2.62 ft)

    DORI Distance

    Lens

    Detect

    Observe

    Recognize

    Identify

    W

    44.1 m (144.69 ft)

    17.7 m

    (58.07 ft)

    8.8 m

    (28.87 ft)

    4.4 m

    (14.44 ft)

    T

    144.8 m (475.07 ft)

    57.9 m

    (189.96 ft)

    29.0 m

    (96.14 ft)

    14.5 m

    (47.57 ft)
    DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

    Intelligence

    IVS (Perimeter Protection)

    Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

    Smart Search

    Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

    Video

    Video Compression

    H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

    Smart Codec

    Smart H.265+; Smart H.264+

    Video Frame Rate

    Main stream: 1920 × 1080@(1–25/30 fps)
    Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
    *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

    Stream Capability

    2 streams

    Resolution

    1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

    Bit Rate Control

    CBR/VBR

    Video Bit Rate

    H.264: 32 kbps–6144 kbps
