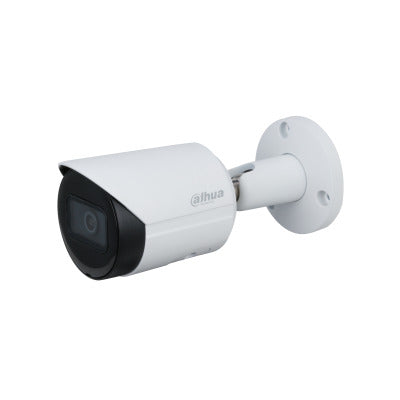

DAHUA IP 4MP SMD WDR 2.8MM IR30 BULLET STARLIGHT IVS (PROTECCION DE PERIMETRO) MICRO-SD METALICA IP67

DAHUA IP 4MP SMD WDR 2.8MM IR30 BULLET STARLIGHT IVS (PROTECCION DE PERIMETRO) MICRO-SD METALICA IP67

$62.39
Ir directamente a la información del producto
DAHUA IP 4MP SMD WDR 2.8MM IR30 BULLET STARLIGHT IVS (PROTECCION DE PERIMETRO) MICRO-SD METALICA IP67
  • DAHUA IP 4MP SMD WDR 2.8MM IR30 BULLET STARLIGHT IVS (PROTECCION DE PERIMETRO) MICRO-SD METALICA IP67
DAHUA IP 4MP SMD WDR 2.8MM IR30 BULLET STARLIGHT IVS (PROTECCION DE PERIMETRO) MICRO-SD METALICA IP67

DAHUA IP 4MP SMD WDR 2.8MM IR30 BULLET STARLIGHT IVS (PROTECCION DE PERIMETRO) MICRO-SD METALICA IP67

$62.39

IPC-HFW2441S-S

4MP IR Fixed-focal Bullet WizSense Network Camera

> 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image.

> Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560 × 1440@25/30 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in IR LED, and the max. illumination distance is 30 m.

> ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

> Supports max. 256 G Micro SD card; built in MIC.

> 12 VDC/PoE power supply.

> IP67 protection.

> SMD Plus.



  • Specifications
  • Accessories
  • Download

  • Product Selector

    Technical Specification

    Camera

    Image Sensor

    1/2.9" CMOS

    Max. Resolution

    2688 (H) × 1520 (V)

    ROM

    128 MB

    RAM

    128 MB

    Scanning System

    Progressive

    Electronic Shutter Speed

    Auto/Manual 1/3 s–1/100,000 s

    Min. Illumination

    0.008 lux@F1.6 (Color, 30 IRE)
    0.0008 lux@F1.6 (B/W, 30 IRE)
    0 lux (Illuminator on)

    S/N Ratio

    >56 dB

    Illumination Distance

    30 m (98.43 ft) (IR LED)

    Illuminator On/Off Control

    Auto; manual

    Illuminator Number

    1 (IR LED)

    Pan/Tilt/Rotation Range

    Pan: 0°–360°
    Tilt: 0°–90°
    Rotation: 0°–360°

    Lens

    Lens Type

    Fixed-focal

    Lens Mount

    M12

    Focal Length

    2.8 mm; 3.6 mm

    Max. Aperture

    F1.6

    Field of View

    2.8mm: H: 95°; V: 52°; D: 114°;

    3.6mm: H: 78°; V: 41°; D: 94°

    Iris Control

    Fixed

    Close Focus Distance

    2.8 mm: 0.9 m (2.95 ft);

    3.6 mm: 1.6 m (5.25 ft)

    DORI Distance

    Lens

    Detect

    Observe

    Recognize

    Identify

    2.8 mm

    63.6 m
    (208.66 ft)

    25.4 m
    (83.33 ft)

    12.7 m
    (41.67 ft)

    6.4 m
    (20.99 ft)

    3.6 mm

    85.4 m
    (280.18 ft)

    34.2 m
    (112.20 ft)

    17.1 m
    (56.10 ft)

    8.5 m
    (27.89 ft)

    Intelligence

    IVS (Perimeter Protection)

    Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

    Smart Search

    Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

    Video

    Video Compression

    H.264H; H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)

    Smart Codec

    Smart H.265+; Smart H.264+

    Video Frame Rate

    Main stream: 2688 × 1520@ (1–20 fps)/2560 × 1440@(1–25/30 fps)
    Sub stream: 704 × 576@ (1–25 fps)/704 × 480@ (1–30 fps)
    *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

    Stream Capability

    2 streams

    Resolution

    4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

    Bit Rate Control

    CBR/VBR

    Video Bit Rate

    H.264: 32 kbps–6144 kbps
    H.265: 12 kbps–6144 kbps

    Day/Night

    Auto (ICR)/Color/B/W

    BLC
