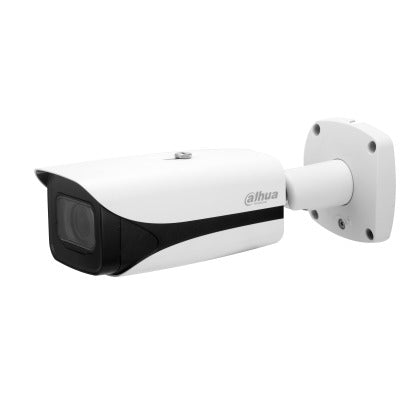

DAHUA IP 4MP WIZSENSE BULLET CAMERA WDR140DB 2.7-12MM MOTOR IR60M IP67 IK10 EPOE

DAHUA SKU: DH-IPC-HFW5442EP-ZE-2712-S3
DAHUA IP 4MP WIZSENSE BULLET CAMERA WDR140DB 2.7-12MM MOTOR IR60M IP67 IK10 EPOE

DAHUA IP 4MP WIZSENSE BULLET CAMERA WDR140DB 2.7-12MM MOTOR IR60M IP67 IK10 EPOE

DAHUA SKU: DH-IPC-HFW5442EP-ZE-2712-S3
/
  • Inventario en el camino

IPC-HFW5442E-ZE

4MP IR Vari-focal Bullet WizMind Network Camera

* The parameters and datasheets below can only be applied to 5442- Z-S3 series.

> 4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.

> Outputs max. 4MP (2688×1520) @25/30 fps.

> Built-in IR LED, and the max. illumination distance is 60 m.

> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.

> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC.

> 12 VDC/PoE power supply; ePoE.

> IP67 and IK10 protection.

> SMD 3.0.


  • Especialización
  • Accesorios
  • Descargar
  • selector-pcimg

    Selector de productos

    Camera

    Image Sensor

    1/1.8" CMOS

    Max. Resolution

    2688 (H) × 1520 (V)

    ROM

    4 GB

    RAM

    1 GB

    Scanning System

    Progressive

    Electronic Shutter Speed

    Auto/Manual 1/3 s–1/100,000 s

    Min. Illumination

    0.0007 lux@F1.8 (Color, 30 IRE)
    0.0004 lux@F1.8 (B/W, 30 IRE)
    0 lux (Illuminator on)

    S/N Ratio

    >56 dB

    Illumination Distance

    Up to 60 m (196.85 ft) (IR)

    Illuminator On/Off Control

    Auto;Zoomprio;Manual

    Illuminator Number

    4 (IR LED)

    Angle Adjustment

    Pan: 0°–360°
    Tilt: 0°–90°
    Rotation: 0°–360°

    Lens

    Lens Type

    Motorized vari-focal

    Lens Mount

    φ14

    Focal Length

    2.7 mm–12 mm

    Max. Aperture

    F1.8

    Field of View

    H: 115°–47°; V: 62°–27°; D: 137°–54°

    Iris Control

    Auto

    Close Focus Distance

    1.5 m (4.92 ft)

    DORI Distance

    Lens

    Detect

    Observe

    Recognize

    Identify

    W

    57.5 m (188.65 ft)

    23.0 m

    (75.46 ft)

    11.5 m

    (37.73 ft)

    5.8 m

    (19.03 ft)

    T

    130.8 m (429.13 ft)

    52.3 m

    (171.59 ft)

    26.2 m

    (85.96 ft)

    13.1 m

    (42.98 ft)
    DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

    Intelligence

    IVS (Perimeter Protection)

    Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection

    Smart Object Detection

    Smart abandoned object; smart missing object

    SMD

    SMD 3.0

    AcuPick

    Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.

    AI SSA

    Yes

    Face Detection

    Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting

    People Counting

    Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.

    Heat Map

    Yes

    Video Metadata

    Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.
    Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling.
    Non-motor vehicle attributes: type, color, number of people, top type and color, hat.
    Human body attributes: gender, top/bottom type and color, bag, hat and umbrella.
    Face attributes: gender, age, expressions, glasses, face mask and beard.

    Smart Search

    Work tog
