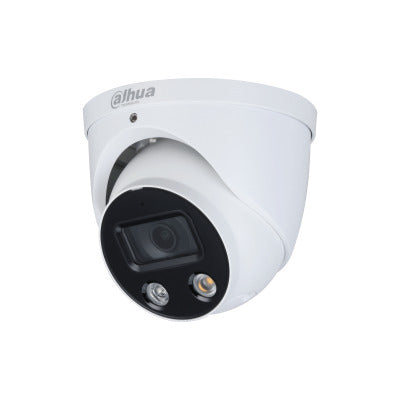

DAHUA IP 5 MP Smart Dual Illumination Active Deterrence Fixed-focal Eyeball WizSens

DAHUA SKU: DH-IPC-HDW3549HP-AS-PV-0280B-S3
DAHUA IP 5 MP Smart Dual Illumination Active Deterrence Fixed-focal Eyeball WizSens

DAHUA IP 5 MP Smart Dual Illumination Active Deterrence Fixed-focal Eyeball WizSens

DAHUA SKU: DH-IPC-HDW3549HP-AS-PV-0280B-S3
/
  • Inventario en el camino

IPC-HDW3549H-AS-PV-S3

5 MP Smart Dual Illumination Active Deterrence Fixed-focal Eyeball WizSense Network Camera

> 5 MP 1/2.7" CMOS image sensor, low luminance, and high definition image.· Outputs max. 5 MP (2592 × 1944)@20 fps and supports 4 MP (2688 ×
1520)@25/30 fps> H.265 codec, high compression rate, ultra-low bit rate.· Built-in warm light and IR LED; the max. IR illumination distance is 30 m
and warm light distance is 30 m.> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable
to various bandwidth and storage environments.> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable
to various monitoring scenes.> Intelligent monitoring: Intrusion, tripwire (the two function support the
classification and accurate detection of vehicle and human).> Abnormality detection: Motion detection, privacy masking, scene
network disconnection, IP conflict, illegal access, and voltage detection.> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD
card; buit-in dual MICs; 1-ch speaker.> 12 VDC/PoE power supply.· IP67 protection.· Sound and light alarm (red and blue lights).· SMD 3.0.
> One press arming/disarming through alarm input.


  • Specifications
  • Accessories
  • Download

  • Product Selector

    Camera

    Image Sensor

    1/2.7" CMOS

    Max. Resolution

    2592 (H) × 1944 (V)

    ROM

    128 MB

    RAM

    512 MB

    Scanning System

    Progressive

    Electronic Shutter Speed

    Auto/Manual 1/3 s–1/100,000 s

    Min. Illumination

    0.003 lux@F1.0 (Color, 30 IRE)
    0.0003 lux@F1.0 (B/W, 30 IRE)
    0 lux (illuminator on)

    S/N Ratio

    ﹥ 56 dB

    Illumination Distance

    30 m (98.43 ft) (IR)
    30 m (98.43 ft) (warm light)

    Illuminator On/Off Control

    Auto; manual

    Illuminator Number

    1 (IR LED)
    1 (warm light)

    Pan/Tilt/Rotation Range

    Pan: 0°–360°
    Tilt: 0°–78°
    Rotation: 0°–360°

    Lens

    Lens Type

    Fixed-focal

    Mount Type

    M12

    Focal Length

    2.8 mm; 3.6 mm

    Field of View

    2.8 mm: Horizontal: 97°× Vertical: 70°× Diagonal: 128°
    3.6 mm: Horizontal: 78°× Vertical: 58°× Diagonal: 102°

    Iris Type

    Fixed

    Close Focus Distance

    2.8 mm: 1.5 m (4.92 ft)
    3.6 mm: 2.2 m (7.22 ft)

    DORI Distance

    Lens

    Detect

    Observe

    Recognize

    Identify

    2.8 mm

    66.0 m (216.54 ft)

    26.4 m

    ( 86.61 ft)

    13.2 m

    (43.31 ft)

    6.6 m

    (21.65 ft)

    3.6 mm

    78.0 m (255.91 ft)

    31.2 m

    ( 102.36 ft)

    15.6 m

    (51.18 ft)

    7.8 m

    (25.59 ft)

    Professional, intelligent

    IVS (Perimeter Protection)

    Tripwire; intrusion (Support the classification and accurate detection of vehicle and human)

    SMD 3.0

    Less false alarm, longer detection distance

    Intelligent Search

    Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

    Video

    Video Compression

    H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

    Smart Codec

    Smart H.265+; Smart H.264+

    AI Coding

    AI H.265; AI H.264

    Video Frame Rate

    Main stream: 2592 × 1944@(1 fps–20 fps)/2688 × 1520 @(1 fps–30 fps)
    Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
    Third stream: 1920 × 1080@(1 fps–25/30 fps)
    *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

    Stream Capability

    3 streams

    Resolution

    5M (2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

    Bit Rate Control

    CBR/VBR

    Video Bit Rate

    H.264: 3 kbps–20480 kbps
    H.265: 3 kbps–20480 kbps

    Day/Night

    Auto (ICR)/Color/B/W

    BLC

    Yes

    HLC

    Yes

    WDR
