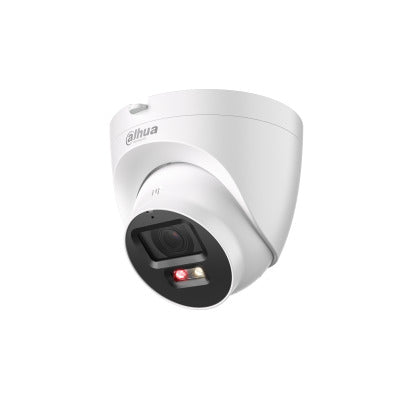

DAHUA IP 5MP SMART DUAL LIGHT ACTIVE DETERRENCE FIXED-FOCAL EYEBALL WIZSENSE IP67

DAHUA SKU: DH-IPC-HDW2549TP-S-PV-0280B
DAHUA IP 5MP SMART DUAL LIGHT ACTIVE DETERRENCE FIXED-FOCAL EYEBALL WIZSENSE IP67

DAHUA IP 5MP SMART DUAL LIGHT ACTIVE DETERRENCE FIXED-FOCAL EYEBALL WIZSENSE IP67

DAHUA SKU: DH-IPC-HDW2549TP-S-PV-0280B
/
  • Inventario en el camino

Pdf del producto

Manual del producto

IPC-HDW2549T-S-PV

5MP Smart Dual Light Active Deterrence Fixed-focal Eyeball WizSense Network Camera

> 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.

> Outputs max. 5 MP (2960 × 1688)@20 fps, and 4 MP (2688 × 1520)@25/30 fps by default.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in IR LED and warm light, and the max. IR illumination distance is 30 m, the max. warm light distance is 30 m.

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).

> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.

> Supports max. 256 G Micro SD card; built-in Mic; built-in speaker; support two-way talk.

> 12 VDC/PoE power supply, easy for installation.

> IP67 protection.

> Sound and light alarm.

> SMD Plus.

> One-tap arming/disarming.


  • Specifications
  • Accessories
  • Download
  • selector-pcimg

    Product Compare

    Camera

    Image Sensor

    1/2.7" CMOS

    Max. Resolution

    2960 (H) × 1688 (V)

    ROM

    128 MB

    RAM

    256 MB

    Scanning System

    Progressive

    Electronic Shutter Speed

    Auto/Manual 1/3 s–1/100,000 s

    Min. Illumination

    0.006 lux@F1.0 (Color, 30 IRE)
    0.0006 lux@F1.0 (B/W, 30 IRE)
    0 lux (Illuminator on)

    S/N Ratio

    >56 dB

    Illumination Distance

    Up to 30 m (98.43 ft) (IR)
    Up to 30 m (98.43 ft) (Warm Light)

    Illuminator On/Off Control

    Auto; Manual

    Illuminator Number

    1 (IR LED); 1 (Warm light)

    Angle Adjustment

    Pan: 0°–360°
    Tilt: 0°–78°
    Rotation: 0°–360°

    Lens

    Lens Type

    Fixed-focal

    Lens Mount

    M12

    Focal Length

    2.8 mm; 3.6 mm

    Max. Aperture

    F1.0

    Field of View

    2.8 mm: H: 111.0°; V: 58.5°; D: 136.0°
    3.6 mm: H: 91.9°; V: 48.7°; D: 107.7°

    Iris Control

    Fixed

    Close Focus Distance

    2.8 mm: 1.4m (4.59 ft); 3.6 mm: 2.0m (6.56 ft)

    DORI Distance

    Lens

    Detect

    Observe

    Recognize

    Identify

    2.8 mm

    63.8 m (209.32 ft)

    25.5 m

    (83.66 ft)

    12.8 m

    (41.99 ft)

    6.4 m

    (21.00 ft)

    3.6 mm

    77.8 m (255.25 ft)

    31.1 m

    (102.03 ft)

    15.6 m

    (51.18 ft)

    7.8 m

    (25.59 ft)
    DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

    Intelligence

    IVS (Perimeter Protection)

    Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

    SMD

    SMD Plus

    Smart Search

    Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

    Video

    Video Compression

    H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)

    Smart Codec

    Smart H.265+; Smart H.264+

    Video Frame Rate

    Main stream: 2960 × 1668@(1–20 fps)/2688 × 1520@(1-25/30 fps);
    sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps);
    *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

    Stream Capability

    2 streams

    Resolution

    5M (2960 × 1668); 4.6M (2880 × 1620); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
