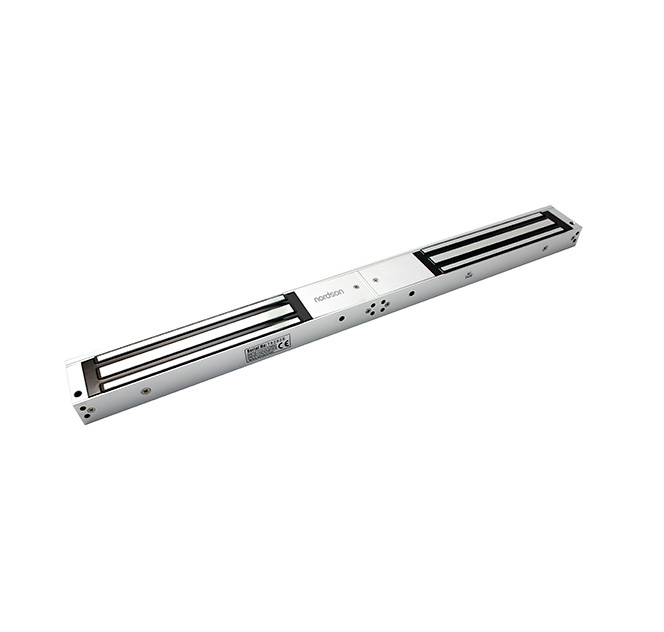

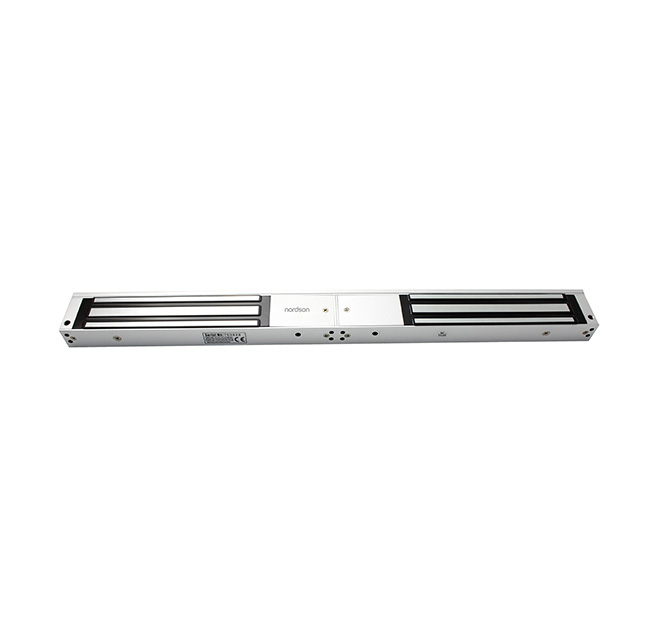

NORDSON DOUBLE ELECTROMAGNETIC LOCK (600LBS X 2)
NORDSON DOUBLE ELECTROMAGNETIC LOCK (600LBS X 2)
NE-280DS, double door magnetic lock, with the door state signal feedback ,specially used to normal glass door,wooden door,metal door,fire doors, small doors,the most widely used.Hoisting design,saves time and power when installation.Inward door,frameless glass door,narrow door all have a complete set of accessories.
Special Anti-residual magnetic design makes automatic access control safer and more convenient.
1.With LED(double color indicate), has door status signal output,passed 600lbs super static linear tension tests.
2.Anti-residual magnetic design,keep constant tension.
3.Built-in reverse current protection device (MOV), performance stability ,safety coefficient is higher.
4.Wear materials, durable.
5.Electromagnetic suction work completely, there is no mechanical failure.
6.Shell with high strength alloy material, anode hardening treatment.
7.lock body with double insulation treatment.
8.Through the European CE and ROHS, MA certification in China.
Holding Force 2x280kg (600Lbs) Lock Status Indicator Red and Green, double color LED Lock Status Sensors NO,NC,COM Rated Operating Voltage 12/24VDC Current consumption 12V/500mA 24V/250mA Optional Functions Relock Delay Timer,Buzzer Surface finish for magnet Zinc plated Surface finish for armature plate Zinc plated Ambient temperature in °C -10～+55℃(14-131F) Suitable for Wooden & Aluminum & Glass & Fireproof &Metal Magnets Dimensions(L x W x D) 500Lx42Wx25H(mm) Armature Plate Dimensions(L x W x D) 180Lx32Wx11H(mm) Weight in kg 4.0kg CE-mark for building Yes Rohs-mark for building Yes
