NORDSON SINGLE ELECTROMAGNETIC LOCK (600LBS)
NORDSON
SKU: NS-NE-280(LED)
NORDSON SINGLE ELECTROMAGNETIC LOCK (600LBS)
NORDSON
SKU: NS-NE-280(LED)
Precio normal
$20.09
- En stock

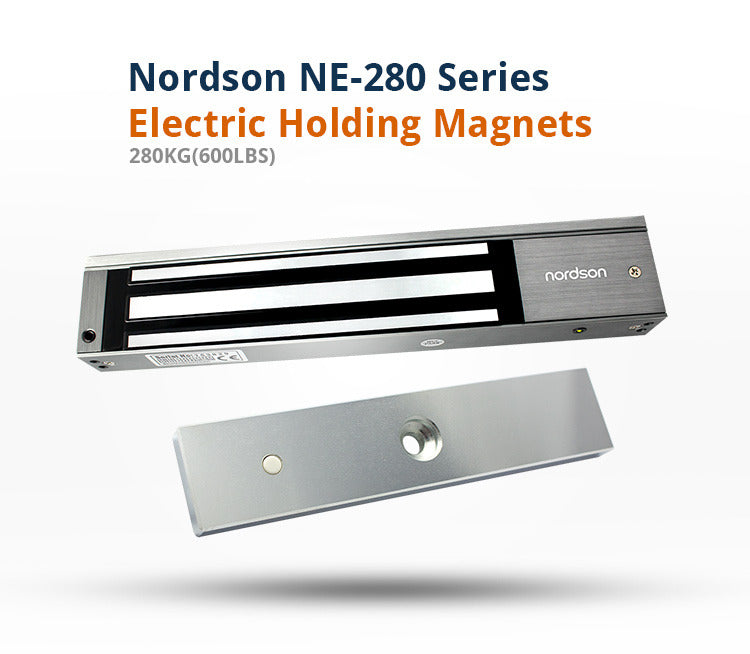

NE-280 600Lbs Magnetic Door Lock
-
- Voltage:DC12V or DC24V
- Holding Force: 280kg (600Lbs)
- Lock Size: 250L*48W*25H(mm)
- Armature Plate:180L*38W*11H(mm)
- Current Draw: 12V/500mA 24V/250mA
- no residual magnetism, no mechanical damage 90 degrees open for all kinds of doors with frame
- With Buzzer Customization Available
- Weight: 2.0kg
1.Passed 600lbs super static linear tension tests.
2.Anti-residual magnetic design,keep constant tension.
3.Built-in reverse current protection device (MOV),performance stability ,safety coefficient is higher.
4.Wear materials, durable.
5.Electromagnetic suction work completely, there is nomechanical failure.
6.Shell with high strength alloy material, anodehardening treatment.
7.lock body with double insulation treatment.
8.Throughthe European CE and ROHS, MA certification in China.
| Holding Force | 280kg (600Lbs) |
| Lock Status Sensors | NO |
| Rated Operating Voltage | 12/24VDC |
| Current consumption | 12V/500mA 24V/250mA |
| Optional Functions | LED,Lock Status Sensors. |
| Surface finish for magnet | Zinc plated |
| Surface finish for armature plate | Zinc plated |
| Ambient temperature in °C | -10～+55℃(14-131F) |
| Suitable for | Wooden & Aluminum & Glass & Fireproof &Metal |
| Magnets Dimensions(L x W x D) | 250Lx48Wx25H(mm) |
| Armature Plate Dimensions(L x W x D) | 180L*38W*11H(mm) |
| Weight in kg | 2.0kg |
| CE-mark for building | Yes |
| Rohs-mark for building | Yes |
