Holding Force 600kg (1200lbs) Waterproof grade IP65 Lock Status Sensors Dry contact NO,NC,COM Rated Operating Voltage 12/24VDC Current consumption 12V/600mA 24V/300mA Optional Functions Relock Delay Timer,Buzzer Surface finish for magnet Zinc plated Surface finish for armature plate Zinc plated Ambient temperature in °C -10～+55℃(14-131F) Suitable for Wooden & Aluminum & Glass & Fireproof &Metal Magnets Dimensions(L x W x D) 265L*71W*40H(mm) Armature Plate Dimensions(L x W x D) 185L*5760W*13H(mm) Weight in kg 4.5kg CE-mark for building Yes Rohs-mark for building Yes
NORDSON STAINLESS STEEL ELECTROMAGNETIC LOCK WITH WATERPROOF IP68
$82.76
Ir directamente a la información del producto
NORDSON STAINLESS STEEL ELECTROMAGNETIC LOCK WITH WATERPROOF IP68
$82.76

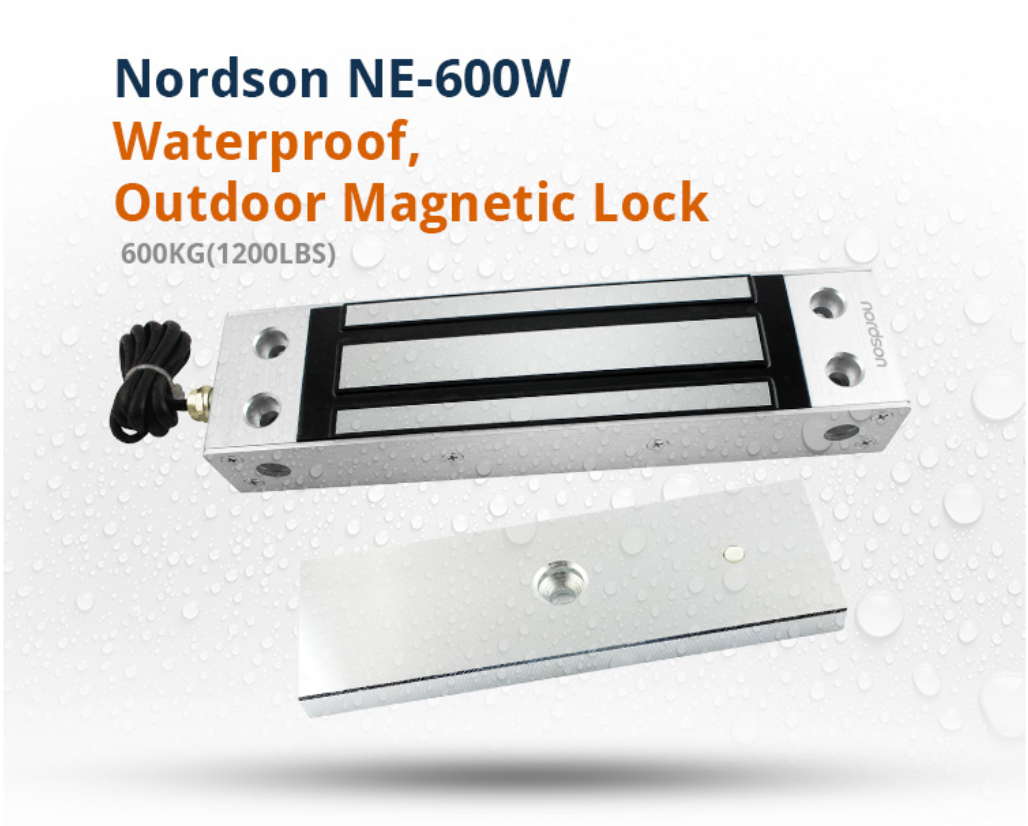

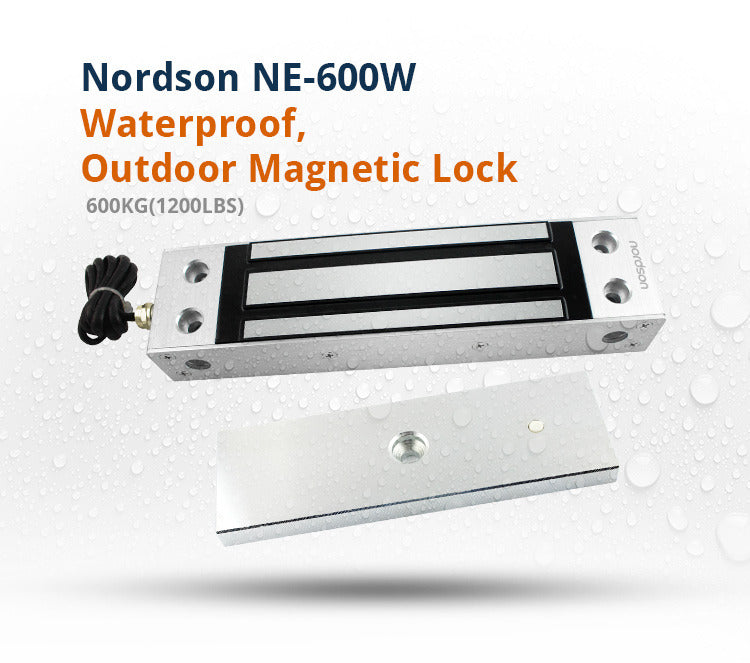

NW-600W single door waterproof outdoor gate lock,specially used to out glass door,wodden door,metal door,fire doors,and all kinds of door.Hoisting design,saves time and power when installation.Inward door,frameless glass door,narrow door all have a complete set of accessories.Special Anti-residual magnetic design makes automatic access control safer.
1.Waterproof,outdoor gate lock,passed 1200lbs super static linear tension tests.
2.Anti-residual magnetic design,keep constant tension.
3.Built-in reverse current protection device (MOV), performance stability ,safety coefficient is higher.
4.Wear materials, durable.
5.waterproof, whole sealing treatment.
6.Suitable for Indoor and outdoor.
7.Electromagnetic suction work completely, there is no mechanical failure.
8.Shell with high strength alloy material, anode hardening treatment.
9.lock body with double insulation treatment.
10.Through the European CE and ROHS, MA certification in China.
