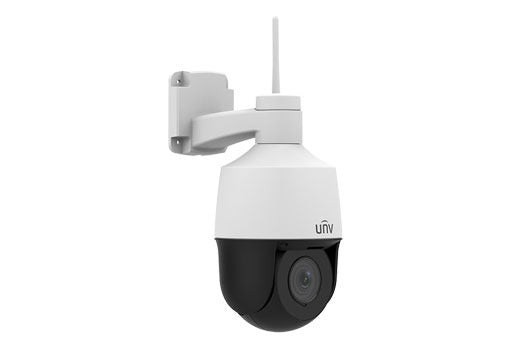

UNIVIEW IP 2MP PTZ CAMERA IR50M 2.8-12MM LIGHTHUNTER WIFI TWO-WAY AUDIO SD WDR IP66 AUTOTRACKING
UNIVIEW
SKU: UN-IPC6312LR-AX4W-VG
UNIVIEW IP 2MP PTZ CAMERA IR50M 2.8-12MM LIGHTHUNTER WIFI TWO-WAY AUDIO SD WDR IP66 AUTOTRACKING
UNIVIEW
SKU: UN-IPC6312LR-AX4W-VG
Precio normal
$187.19
IPC6312LR-AX4W-VG
2MP LightHunter WIFI IR Network PTZ Camera
- • High quality image with 2MP, 1/2.7"CMOS sensor
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
• People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
• LightHunter technology ensures ultra-high image quality in low illumination environment
• Up to 120 dB Optical WDR (Wide Dynamic Range)
• Wi-Fi connection and easy installation
• Built-in Mic & Speaker
• Smart IR, Up to 50 m (164 ft) IR diatance
• Micro SD, up to 256GB
• IP66 protection
IPC6312LR-AX4W-VG Camera Sensor 1/2.7" progressive scan, 2.0 megapixel, CMOS Min. Illumination Colour:0.002 lux (F1.6,AGC ON)
0 lux with IRDay/Night IR-cut filter with auto switch (ICR) Shutter Auto/Manual, shutter time: 1 s ~ 1/100000 s WDR 120dB S/N >52dB Lens Lens type 2.8~12mm，AF automatic focusing and motorized zoom lens Optical Zoom 4 Iris Fixed; F1.6 Field of View (H) 105.2° ~ 29.32° Field of View (V) 52.6° ~ 16.38° Field of View (D) 108.7° ~ 33.3° DORI DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 2.8mm 43.4 (142.4ft) 17.4 (57.1ft) 8.7 (28.5ft) 4.3 (14.1ft) 12mm 186.2 (610.9ft) 74.5 (244.4ft) 37.2 (122.1ft) 18.6 (61.0ft) Illuminator IR Range Up to 50m (164ft) Wavelength 850nm IR On/Off Control Auto/Manual Video Video Compression Ultra 265, H.265, H.264, MJPEG Frame Rate Main Stream: 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;Video Bit Rate 128 Kbps~16 Mbps ROI Support Video Stream Triple streams OSD Up to 8 OSDs Privacy Mask Up to 4 areas Image White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 Digital Noise Reduction 2D/3D DNR Smart IR Support Flip Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise HLC Support BLC Support Defog Digital Defog Intelligent Smart Intrusion Prevention Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection People Counting Support people flow counting and crowd density monitoring Events Basic Detection Motion detection, Audio detection, Tampering Alarm Auto Tracking Support General Function Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication Audio Audio Compression G.711U,G.711A Two-way Audio Support Suppression Support Sampling Rate 8 kHz Storage Edge Storage Micro SD, up to 256 GB Network Storage ANR,NAS(NFS) Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL Compatible Integration ONVIF (Profile S, Profile G, Profile T), API Client EZStation
EZLive
EZViewWeb Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above Wi-Fi Wireless Standards IEEE802.11b/g/n Frequency Range 2.4 GHz ~ 2.4835 GHz Channel Bandwidth 20 MHz Support Modulation Mode 802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM/HTSecurity 64/128-bit WEP, WPA-PSK/WPA2-PSK Transmit Power 802.11b: 17±1.5dBm @11Mbps
802.11g: 14±1.5dBm @ 54Mbps
802.11n: 12.5±1.5dBm @150MbpsReceive Sensitivity 802.11b: -90dBm @11Mbps (Typical)
802.11g: -75dBm @54Mbps (Typical)
802.11n: -74dBm @150Mbps (Typical)Transmission Rate 802.11b: 11Mbps
802.11g: 54Mbps
802.11n: up to 150MbpsPan & Tilt Pan Range 0° ~ 345° Pan Speed 0.1°/s ~ 50°/s Preset speed: 50°/s Tilt Range -10° ~ 110° Tilt Speed 0.1°/s ~ 40°/s Preset speed: 40°/s Number of Presets 256 Preset Patrol 16 patrols, up to 64 presets for each patrol Patrol Stay Time 120s~1800s Home Position Support Interface Built-in Mic Support Built-in Speaker Support Network 1 * RJ45 10M/100M Base-TX Ethernet Certification EMC CE-EMC (EN 55032:2015+A11:2020; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55035:2017+A11:2020 )
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)RF FCC ID (FCC CFR 47 part15 C)
CE RED (EN301 489-1 V2.2.3; EN 301 489-17 V3.2.4; EN 300 328 V2.2.2; EN IEC 62311:2020)Safety CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)Environment CE-ROHS (2011/65/EU;(EU)2015/863) Protection IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) General
Power
DC12V (±25%) Power consumption: MAX 12W Power Interface Ø 5.5mm coaxial power plug Dimensions (Ø x H) Φ133mm*248mm (Φ5.2”x 9.8”) Weight 0.86 kg (1.90lb) Working Environment -20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing) Storage Environment -40°C ~ 70°C (-40°F to 158°F), Humidity:≤95% RH(non-condensing) Surge Protection 2KV Reset Button Support
