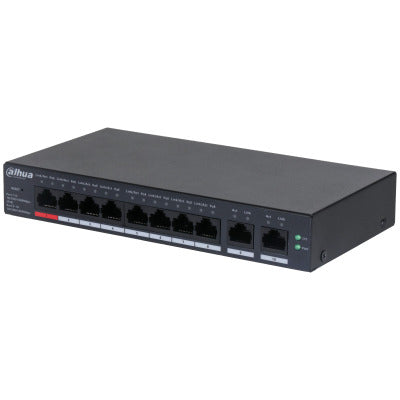

DAHUA 10-PORT CLOUD MANAGED DESKTOP GIGABIT SWITCH WITH 8-PORT POE

Hardware

Included Power Adapter

Yes

PoE

Yes

Ethernet Port

8

Ethernet Port Speed

10/100/1000 Mbps

Ethernet Port Uplink Speed

10/100/1000 Mbps

Description of Function Slots

Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE); Port 9-10: 2 × RJ-45 10/100/1000 Mbps（uplink）

Reset Button

1

Power Supply

External power supply: 54 VDC, 2.22 A

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

5%–95% (RH), non-condensing

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity

5%–95% (RH), non-condensing

Power Consumption

Idling: ≤6 W; Full load: 110 W

Performance

Layer

Layer 2

Management Type

Yes

Smart Managed Switch

Yes

MTBF

127.3 years

Switching Capacity

20 Gbps

Packet Forwarding Rate

14.88 Mpps

Packet Buffer Size

4 Mbit

Jumbo Frame

15K Byte

MAC Table Size

8K

VLAN Number

32

Communication Standard

IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab

Feature

PoE Protocol

IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt

PoE Power

Port 1 ≤ 90 W, Port 2-8 ≤ 30 W, total ≤ 110 W

PoE Power Consumption Management

Yes

PoE Pin Assignment

1,2,4,5（V+）,3,6,7,8（V-）

Long Distance PoE Transmission

Yes

Spanning Tree Protocol
